for Optical Devices
Vacuum evaporation system Sapio-DBR （SGC-S1300i/1550i/1700i）
Ideal for forming optical multilayer DBR film for LED!
General Outline（SGC-S1700i）
- Excellent mass production performance
- Number of mounted substrates
- φ6 inch wafers：Approximately 70 pieces / batch
φ4 inch wafers：Approximately 170 pieces / batch
- Tact time
- within 3 hours /batch (31 layers configuration)
- Required installation area
- W 5,000 mm x D 7,000 mm x H3, 100 mm
- Excellent batch-to-batch repeatability: also supports continuous batch guarantee
- Adjustment of film quality is possible. Technical cooperation of condition correction is possible to suppress film damage due to Chipping.
Features/ Options
- High efficiency exhaust system
- High precision film thickness control system：Wavenavigator, Lafio
- High-power large-area irradiation RF ion source ISG series
- Substrate heating heater：Halogen lamp Within 120 ° C ± 5 ° C
- Low particle specification (optional)
Applications
- LED DBR (Distributed Bragg Reflector) film formation
Specifications (Reference: SGC-S1700i)
| Processing method |
Batch type |
| Exhaust pump |
26 inches DP x 2 + RP + MBP + Meissner trap |
| Installation dimensions |
W5,000㎜×D7,000㎜×H3,100㎜ |
| Equipment weight |
9,300kg |
| Power supply capacity |
AC200V（3φ） / about 130kVA |
| Vacuum chamber size |
φ1,700㎜ |

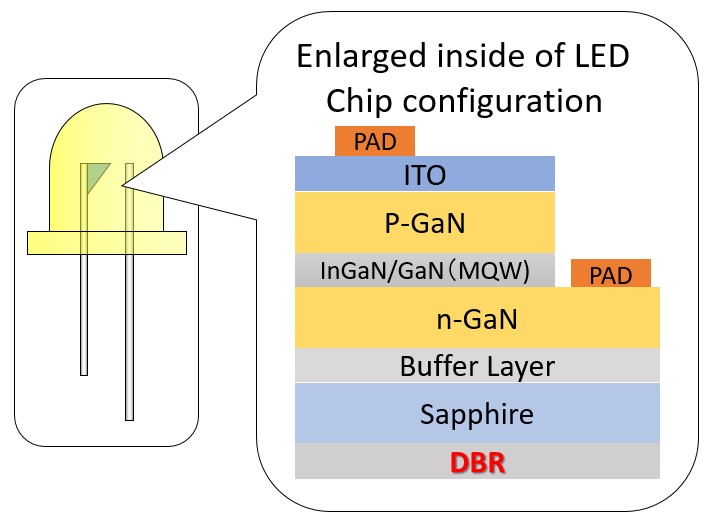

LED device configuration
Used as LED reflective film
Reasons for choosing DBR
Al film, Al + reflection film
- Crystal defects occur due to stress caused by thermal deformation. It leads to the deterioration of the product.
- There is a limit to the increase of reflectance in Al reflective film.
DBR (dielectric multilayer film mirror)
- There is little deterioration due to thermal deformation
- Realization of high reflectance that cannot be obtained with aluminum reflective film

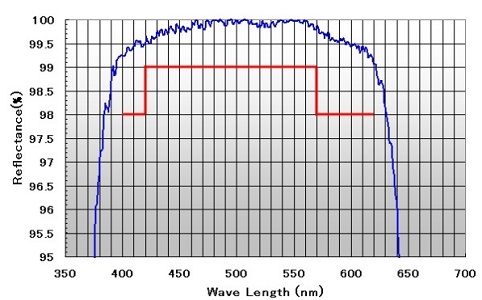

DBR spectral characteristics example
*For the improvement of product, please understand that the specifications are subject to change without prior notice.
