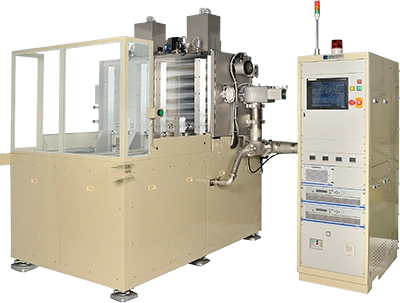

Injection Molding Machine Linked High Speed Sputtering / Polymerization Equipment
SPP Series
There is also a type that connects to a molding machine
Metal films and protective films on resin substrates can be formed fully automatically
Injection molding machine and this system are interlocked, The molding → metal film (Al) → protective film (SiOx) can be easily and fully automated. This equipment achieves a cycle time similar to that of an injection molding machine, making it possible to proceed smoothly from molding to film formation.
Applications
Car headlamp reflector / Mirror / Metal decorative film
Features
- 1. Parallel processing: The system consists of two independent vacuum chambers, allowing different processes to be processed simultaneously.
- 2. Cycle time: Approx.2min. (Al: 100nm＋SiOx: 20nm)
- 3. Full automation: Can be interlocked with injection molding machines and conveying equipment.
Specifications
| Exhaust Pump | Sputtering chamber: RP＋MBP＋TMP Polymerization chamber: RP＋MBP (TMP optional) |
|---|---|
| Installation Dimensions | W4,000mm×D4,500mm×H2,400mm |
| Weight | 4,600kg |
| Power Supply Capacity | AC200～220V／Approx.160kVA |
