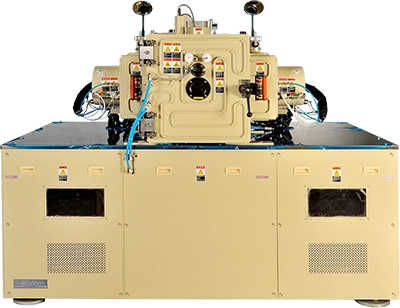

Arc-Discharge-Type Ion Plating Equipment
SIA-400T

For forming a surface hardened film

Ion plating system with arc discharge type cathode.
It is possible to form a TiN and TiAlN cured film.

Applications

Cutting tools / Automobile / Mechanical parts / Various molds

Features

  1. 1. It is possible to form a surface-hardened film (TiN, TiAlN film) on cutting tools.
  2. 2. The installation area is within W3,000mm x D2,500mm, which saves space.
  3. 3. Film formation recipe control is possible by touch panel operation.
  4. 4. Ideal as a small-quantity production machine / experimental machine.
  5. 5. Evaporation of refractory metals (tungsten or molybdenum) is also possible.

Specifications

Exhaust Pump TMP＋RP
Exhaust Pump W2,800mm×D2,100mm×H2,000mm
Weight 1,400kg
Power Supply Capacity Main body：AC200V(3Φ)／Approx.38.3kVA (110.5A)
