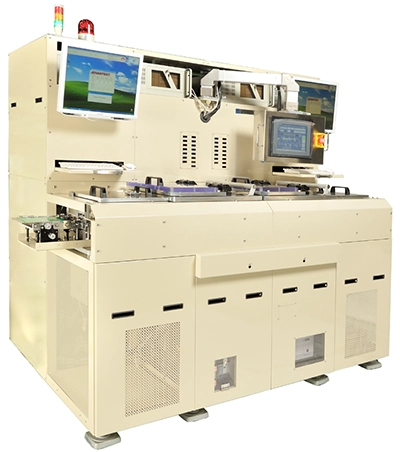

In-line Type Ion Beam Frequency Adjustment Equipment
SFE-X2012
Achieving the world's highest level of tact time
This equipment is intended to adjust the frequency of the crystal device. Adoption of the In-line type of three chambers achieves the world's highest level of tact time.
Also, this system uses the highly accurate, highly stable, and highly reproducible transport mechanism that has been proven in SFE-B03. Frequency adjustment of small workpieces (1.2 x 1.0 or less), which was difficult with in-line device until now, can be stably mass-produced.
Applications
[Products] XTAL/OSC (3225,2520,2016,1612,1210,1008), Tuning fork oscillator (3215,2012,1610,1210)
Features
- 1. Adoption of 3-chamber inline system.
Efficient operation with less idle time. - 2. Multi-source simultaneous processing
SFE-X2012 is equipped with two linear ion sources of 100mm ion beam.
Each unit can process a maximum of 24 workpieces, and a total of 48 workpieces can be processed at the same time. - 3. The micro work (less than 1.2 x 1.0 size) is produced stably by highly precise Transfer mechanism with high repeatability.
- 4. Can be connected to in-line system of SANSEI DENSHI CO., LTD. (optional)
- 5. Small work contact adjustment system： “SEARCHROID” (optional)
*SEARCHROID is a registered trademark of Showa Shinku.
Performance
・Tact time： 0.3sec/pc or less * for the work of 18 MHz or more, 24pcs or more/column
・Adjustment accuracy： ±1.5ppm or less
・Processing number: Up to 24 columns(p4.0) x 32 columns
Specifications
| Exhaust Pump | RP＋TMP＋MBP |
|---|---|
| Installation Dimensions | W3,000mm×D2,100mm×H2,000mm |
| Weight | 2,150kg |
| Power Supply Capacity | AC200V(3φ)／18kVA(54A) |
