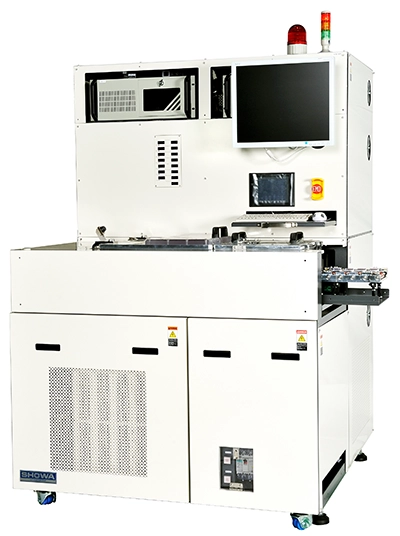

Lord Lock Type Ion Beam Frequency Adjustment Equipment
SFE-B03-Ⅱ
Ministry of Economy, Trade and Industry
“Global Niche Top Companies Selection 100”!
Global standard for frequency adjustment equipment
This device is intended to adjust the frequency of the crystal device. It is a standard model that achieves space saving, high precision, and high productivity.
Highly accurate, stable, and reproducible transfer mechanism enables stable production of minute workpieces of 1.2 x 1.0 or smaller.
The two-chamber load lock system ensures stable operation of the ion source by maintaining a vacuum in the processing chamber at all times.
Applications
[Products] XTAL/OSC (3225,2520,2016,1612,1210,1008), Tuning fork oscillator (3215, 2012,1610,1210)
Features
- 1. Compact・High precision・Low Price・Tact Time：less than 0.4s/pcs
（* SMD 3.2×2.5 24MHｚ H1,000ppm/s L50ppm/s） - 2. Equipped with a linear ion source (beam width: 100mm)
24 to 32 pieces can be processed simultaneously (standard). - 3. The micro work (less than 1.2 x 1.0 size) is produced stably by highly precise Transfer mechanism with high repeatability.
- 4. Equipped with FL mode (automatic resonance frequency calculation mode under load).
- 5. The maintainability of ion source body and contact mechanism has been greatly improved.
- 6. Ion source stable operation
- 7. LD/ULD with magazine transfer and overdrive function [manufactured by SANSEI DENSHI CO., LTD.] (optional)
- 8. Small work contact adjustment system：“SEARCHROID” (optional)
Specifications
| Exhaust Pump | RP+TMP |
|---|---|
| Installation Dimensions | W1,200mm×D1,300mm×H1,800mm |
| Weight | 1,000kg |
| Power Supply Capacity | AC200V(3φ)／10.3kVA(30A) |
