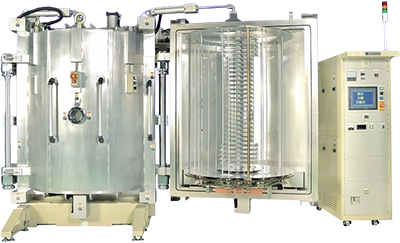

Batch Type Vacuum Deposition Equipment
SDC-1300F

Standard model for decorative film

This equipment is capable of depositing various metal films by vacuum evaporation.
Two substrate carriages are provided, enabling substrate and evaporation material exchange during deposition, for excellent mass production.
Two pairs of evaporation sources are used, enabling two different types of metal deposition.
The self-revolution mechanism and ion plating mechanism (optional) enable deposition on substrates with complex shapes.

Applications

Various decorative films, discontinuous films, electromagnetic wave shielding films

Features

  1. 1. Internal jig system
    Number of self-revolution jigs: 6axes or 8axes
    Jig space: 6axes φ380 mm×H1,200mm, 8axes φ300mm×H1,200mm
  2. 2. Evaporation source system
    Resistance heating system: 2 points switching type
  3. 3. Improved coverage by ion plating mechanism（optional）

Specifications

Specifications DP＋RP＋MBP＋Meissner trap
Exhaust Pump W3,500mm×D5,200mm×H2,700mm
Weight 7,300kg
Power Supply Capacity AC200V(3φ/1φ)／90kVA(300A)
