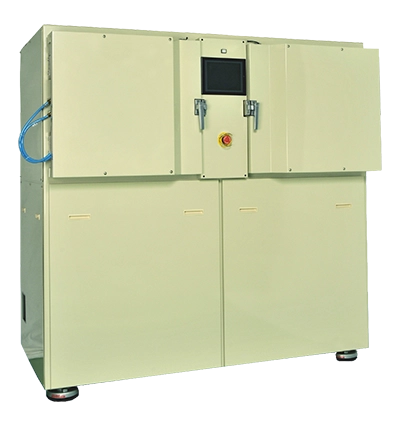

High Vacuum Annealing Equipment
SAF-52T-Ⅱ
Production efficiency improvement／Minimized space
Applications
Removal of internal stress strain generated during processing of crystal units
Stabilize the electrode film
Features
- 1. This equipment is developed for performing heat treatment mainly to eliminate internal stress distortion generated during the working of quartz oscillators etc. and to stabilize electrode films.
- 2. It can accommodate up to 60 standard trays of 170mm × 134 mm with 10 tiers of W460mm×D350mm×H35mm heating shelves on the left and right side in total.
- 3. It provides you with two processing rooms able to operate independently, contributing to the efficient production and reduction of cycle time.
Specifications
| Exhaust Pump | RP＋TMP |
|---|---|
| Installation Dimensions | W1,700mm×D900mm×H1,700mm |
| Weight | 1,200kg |
| Power Supply Capacity | AC200V／three-phase／22.4 kVA (64.7A) |
